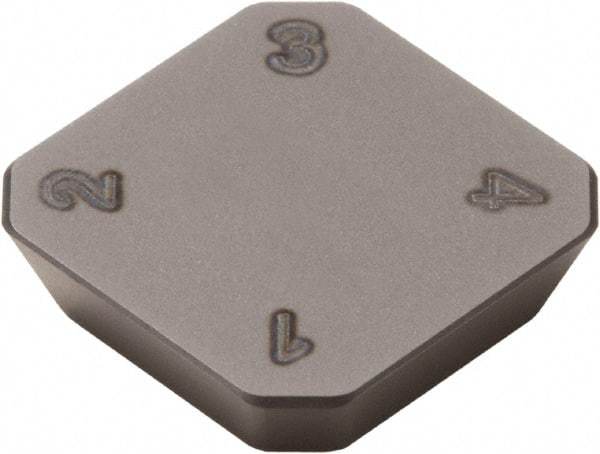

Seco - SEEN42 D16 Grade CBN300 CBN Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle, 1/16" Corner Radius
Item #: 85251783
Brand: Seco
Model #: 00905
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SEEN |
| Insert Size | 42 |
| Material | CBN |
| Manufacturer's Grade | CBN300 |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | D16 |
| Manufacturers Catalog Number | SEEN 42AFTN-D16 |
