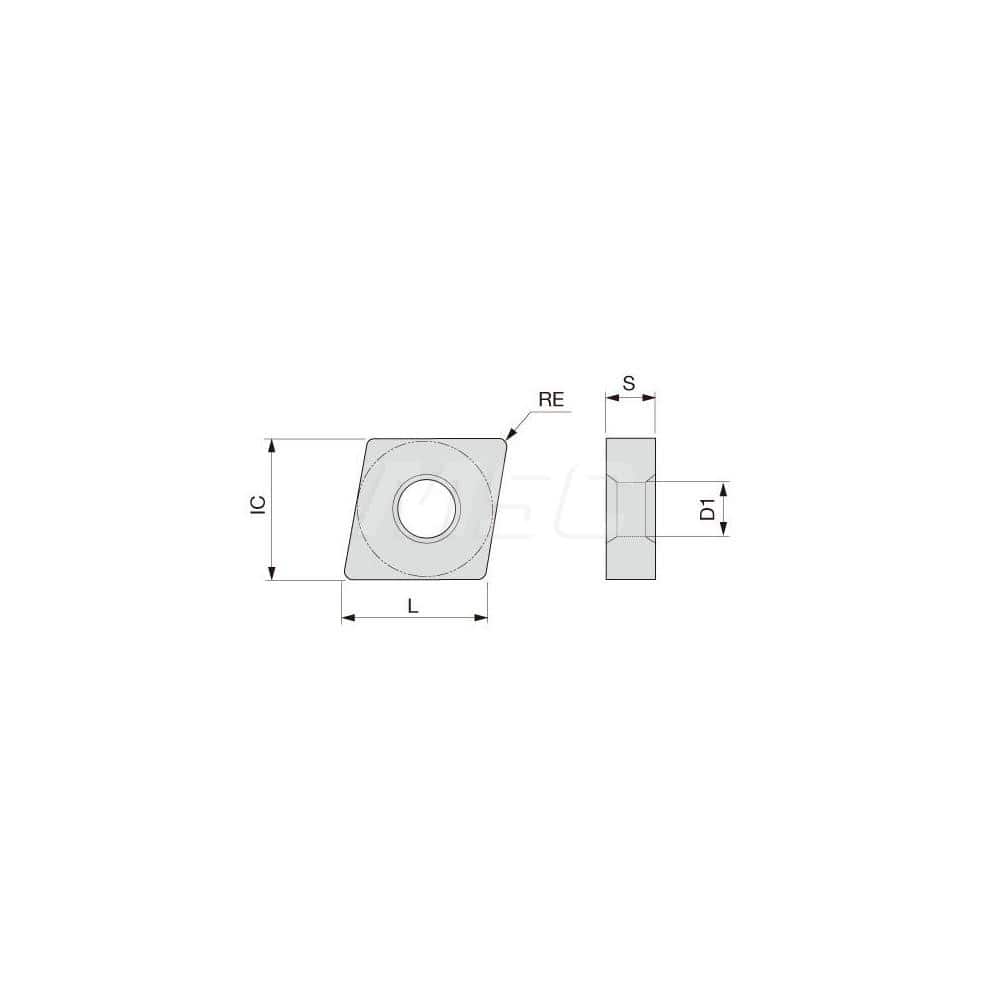

Turning Insert: CNMG644 AH120, Solid Carbide TiAlN Finish, Neutral, 3/4″ Inscribed Circle, 0.0630″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 85169092
Brand: Tungaloy
Model #: 6811664
Product Specifications
| Insert Style | CNMG |
| Insert Size Code | 644 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH120 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | CNMG644AH120 |
| Iso Code | CNMG190616 AH120 |
| Chip Breaker | AR |
| Coating/Finish | TiAlN |
