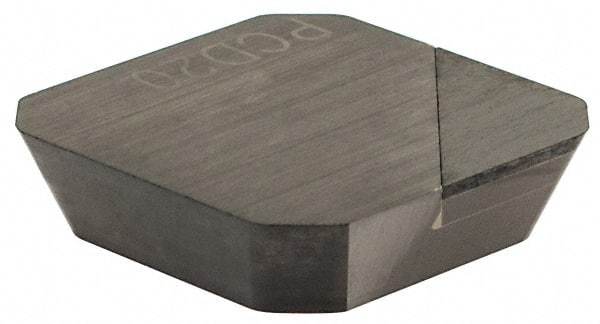

Seco - SEHN1203 Grade PCD20 PCD Milling Insert - Uncoated, 1/8" Thick, 1/2" Inscribed Circle
Item #: 85018836
Brand: Seco
Model #: 04337
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | SEHN |
| Insert Size | 1203 |
| Material | PCD |
| Manufacturer's Grade | PCD20 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 20.000 |
| Rake Angle | 0 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| ISO Number | SEHN1203AFFN-E08 |
