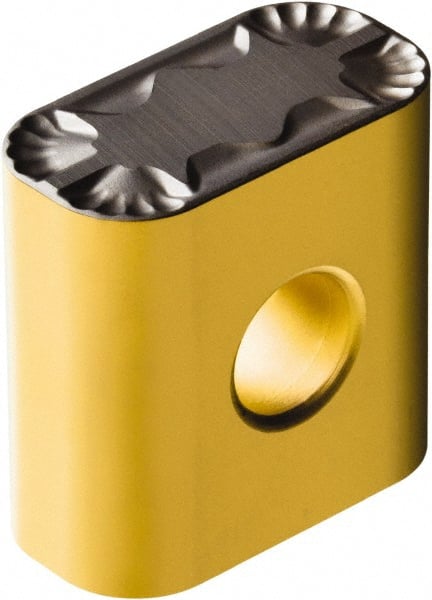

Sandvik Coromant - LNUX191940 PF Grade 4215 Carbide Turning Insert
Item #: 49436413
Brand: Sandvik Coromant
Model #: 5734500
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNUX |
| Insert Size | 191940 |
| Material | Carbide |
| Length (mm) | 19.05 |
| Length (Decimal Inch) | 0.7500 |
| Thickness (Inch) | 3/4 |
| Thickness (Decimal Inch) | 0.7500 |
| Thickness (mm) | 19.05 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | PF |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | LNUX191940PF4215 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5734500 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 15.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.5925 |
| Insert Holding Method | Pin |
| Shape | Rectangle |
