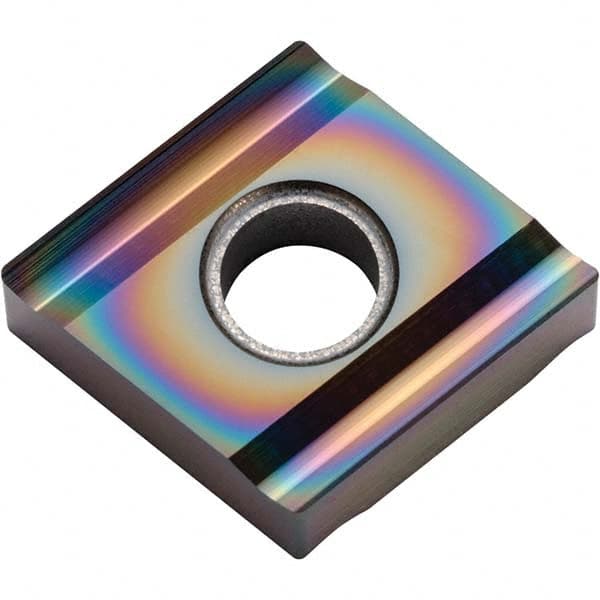

Kyocera - CNGG431 A3 Grade PDL010 Diamond-Like Carbon (DLC) Turning Insert
Item #: 97768634
Brand: Kyocera
Model #: 8860836
| Product Specifications | |
|---|---|
| Insert Style | CNGG |
| Insert Size | 431 |
| Material | Diamond-Like Carbon (DLC) |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PDL010 |
| Coating | Diamond-Like Carbon (DLC) |
| Chip Breaker | A3 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNGG120404L-A3 |
| Rake | Negative |
| Coating Process | DLC |
| Manufacturers Catalog Number | CNGG431LA3 PDL010 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Series | CNGG |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
