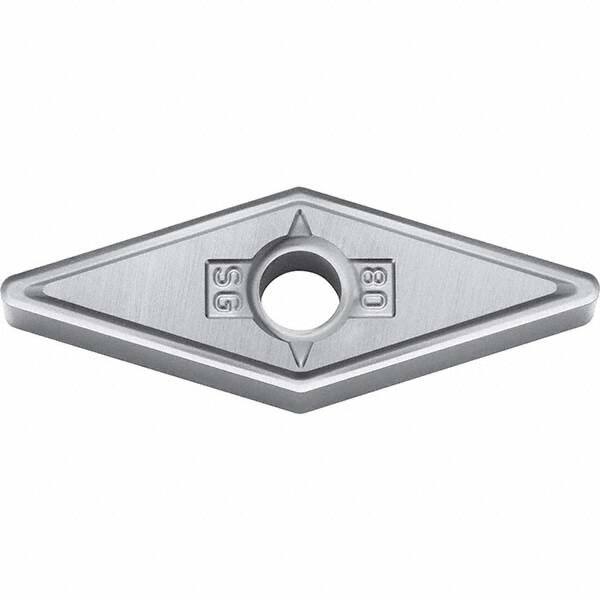

Kyocera - VNMG331 SG Grade SW05 Carbide Turning Insert
Item #: 97765317
Brand: Kyocera
Model #: 8861435
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | SW05 |
| Coating | WC/Co |
| Chip Breaker | SG |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNMG160404SG |
| Rake | Negative |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | VNMG331SG SW05 |
| Primary Workpiece Material | S |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | VNMG |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Copying, Facing, Undercutting |
| MultiUseTool | Yes |
| Shape | Diamond |
