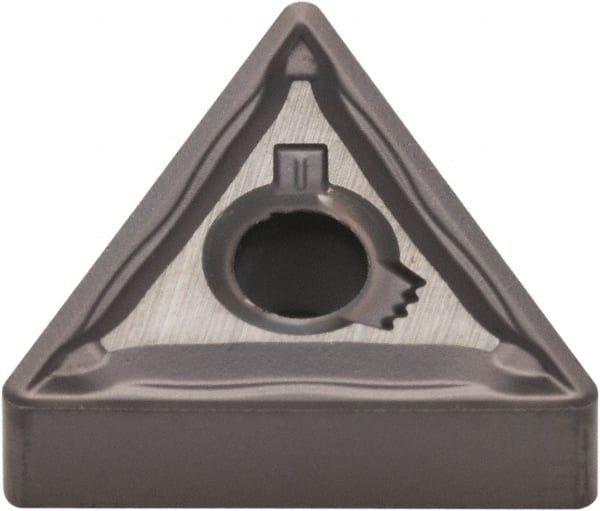

Kennametal - TNMG221 FF KCU10 Grade Carbide Turning Insert
Item #: 69257541
Brand: Kennametal
Model #: 4171837
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 221 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | FF |
| Hole Diameter (Decimal Inch) | 0.0890 |
| ISO Number | TNMG110304FF |
| Manufacturers Catalog Number | TNMG221FF |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
