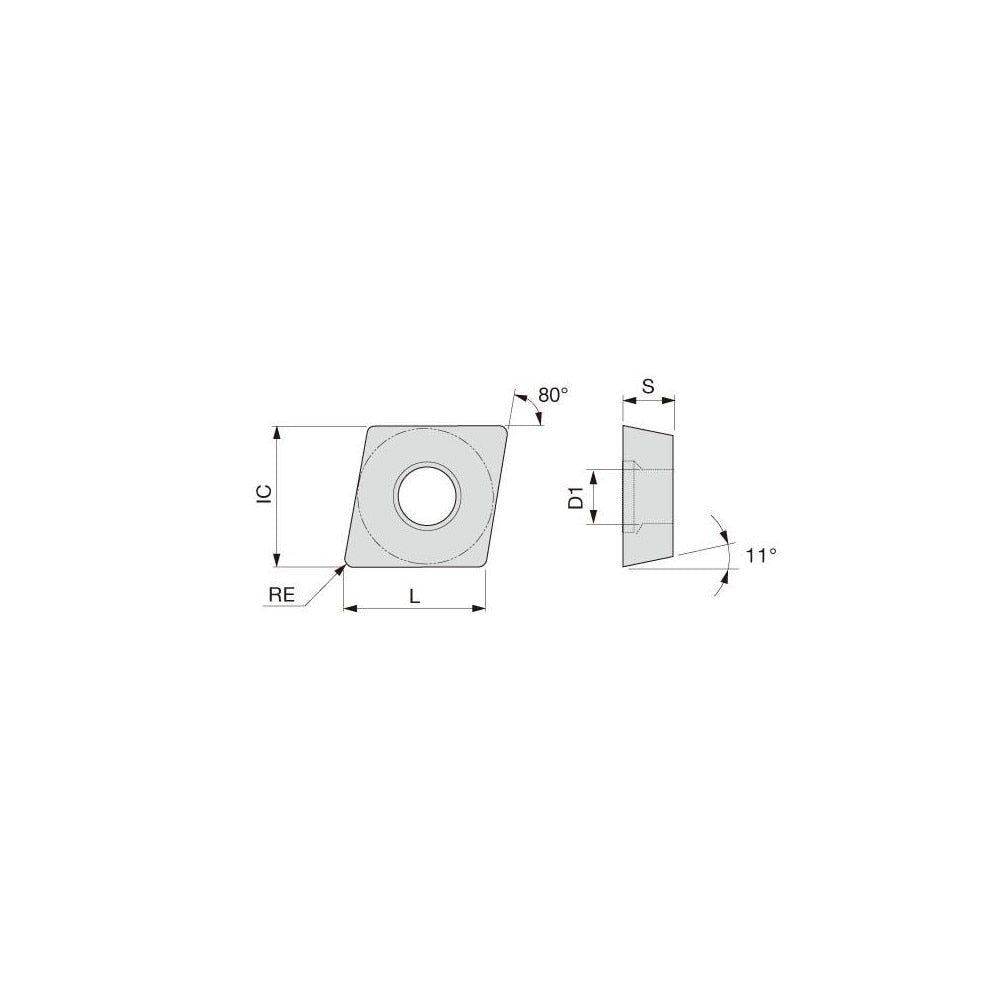

Turning Insert: CPMT2.51.51PSS T6130, Carbide
Item #: 20889499
Brand: Tungaloy
Model #: 6994547
Product Specifications
| ANSI Insert Code | CPMT2.51.51 |
| ISO Insert Code | CPMT080204 |
| Relief Angle | 11 |
| Insert Style | CPMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | T6130 |
| Coating/Finish | TiCN; TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | CPMT-PSS |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Width (Inch) | 5/16 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3190 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | CPMT080204-PSS T6130 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6994547 |
| Material Grade | M15; P15; M30; P30 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | PSS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | CPMT 2.51.51 PSS |
| Width (Decimal Inch - 4 Decimals) | 0.3125 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 2.51.51 |
| ISO Size Code | 080204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2.51.51 |
