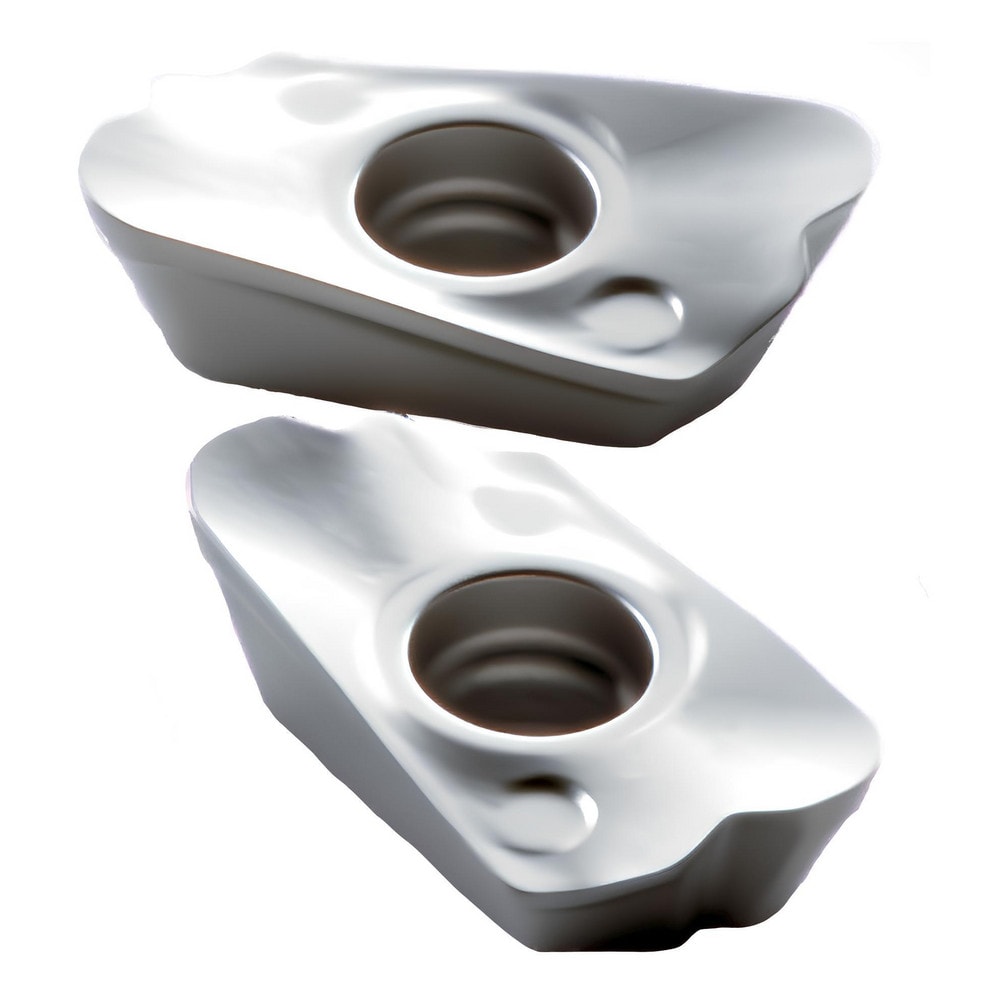

Milling Insert: ZDKT150540SR-GM XP3035, Solid Carbide
Item #: 33626573
Brand: OSG
Model #: 7814081
Product Specifications
| Insert Style | ZDKT |
| Insert Size | 15 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | XP3035 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2188 |
| Coating/Finish | TiALN |
| Relief Angle | 15.00 |
| Insert Size Code | 150540 |
| Length (Inch) | 3/64 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.3661 |
| Inscribed Circle (mm) | 9.30 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0433 |
| Series | 78PSE |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | ZDKT150540SR-GM |
| Iso Code | ZDKT150540SR-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7814081 |
| Cutter Series Compatibility | 78PSE |
| Chip Breaker | GM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3661 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5906 |
