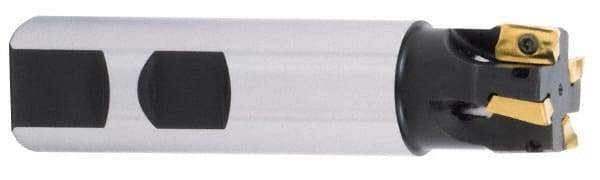

Iscar - 1-1/4" Cut Diam, 0.56" Max Depth of Cut, 1-1/4" Shank Diam, 4-1/4" OAL, Indexable Square Shoulder End Mill - ADCT/ADCR/ADKR/ADKT/ADMT/HM90ADCT/HM90ADKT/HM90ADKW 1505 Inserts, Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 84947480
Brand: Iscar
Model #: 3101877
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.2500 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90AD-15 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5000 |
| Weldon Flat | Yes |
| Insert Compatibility | ADCT/ADCR/ADKR/ADKT/ADMT/HM90ADCT/HM90ADKT/HM90ADKW 1505 |
