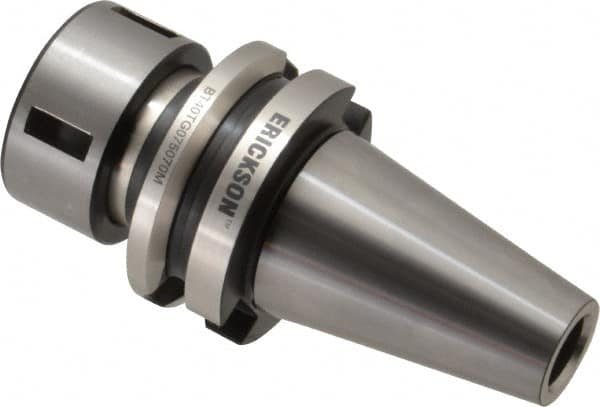

Kennametal - 3/64" to 3/4" Capacity, 70mm Projection, BT40 Taper Shank, TG/PG 75 Collet Chuck - 135.4mm OAL
Item #: 84945203
Brand: Kennametal
Model #: 1156366
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 75 |
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Projection (mm) | 70.00 |
| Projection (Decimal Inch) | 2.7600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/64 |
| Minimum Collet Capacity (mm) | 1.19 |
| Maximum Collet Capacity (mm) | 19.05 |
| Maximum Collet Capacity (Inch) | 3/4 |
| Overall Length (mm) | 135.40 |
| Actuator Type | Wrench |
| Nose Diameter (mm) | 50.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle |
