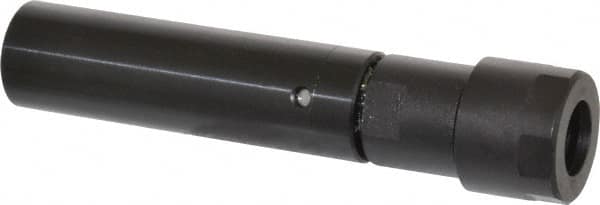

Kennametal - Straight Shank, Series DA100, Double Angle Reamer Collet Chuck - 2.12 Inch Projection, 1/32 to 9/16 Inch Collet Capacity, 3-1/2 Inch Shank Length
Item #: 84942150
Brand: Kennametal
Model #: 1015979
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Collet System | Double Angle Reamer |
| Collet Series | DA100 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 2.1200 |
| Through Coolant | No |
| Minimum Collet Capacity (Inch) | 1/32 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Overall Length (Decimal Inch) | 5.6200 |
| Shank Length (Inch) | 3-1/2 |
| Shank Length (Decimal Inch) | 3.5000 |
| Hex Diameter (Inch) | 3/16 |
| Hex Diameter (Decimal Inch) | 0.1875 |
| Float From Center (Decimal Inch) | 0.0040 |
| PSC Code | 5136 |
