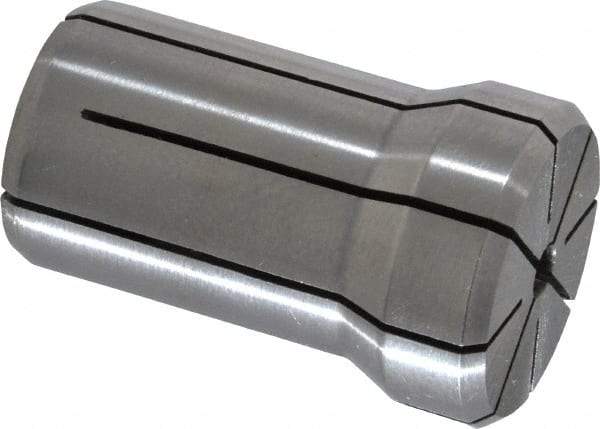

Kennametal - 5/32 Inch, 1/8 to 5/32 Inch Collet Capacity, Series DA180 Double Angle Collet - 1-5/8 Inch Overall Length, 1.035 Inch Overall Diameter, 0.001 Inch TIR
Item #: 84910108
Brand: Kennametal
Model #: 1014609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | DA Collet |
| Collet Series | DA180 |
| Size (Inch) | 5/32 |
| Size (Decimal Inch) | 0.1563 |
| Overall Length (mm) | 41.28 |
| Overall Length (Decimal Inch) | 1.6250 |
| Overall Diameter (mm) | 26.29 |
| Overall Diameter (Decimal Inch) | 1.0350 |
| Minimum Collet Capacity (Decimal Inch) | 0.1250 |
| Maximum Collet Capacity (Decimal Inch) | 0.1563 |
| TIR (mm) | 0.0300 |
| TIR (Decimal Inch) | 0.001000 |
| PSC Code | 5136 |
