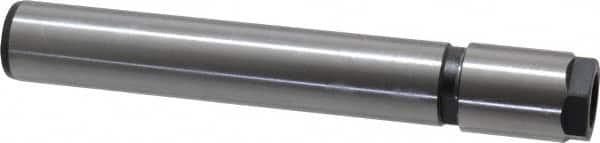

Kennametal - 1/64" to 9/16" Capacity, 1.91" Projection, Straight Shank, DA100 Collet Chuck - 7.31" OAL, 1" Shank Diam
Item #: 84908029
Brand: Kennametal
Model #: 1015342
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Double Angle |
| Collet Series | DA100 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 1.9100 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 1/64 |
| Minimum Collet Capacity (mm) | 0.40 |
| Maximum Collet Capacity (mm) | 14.29 |
| Maximum Collet Capacity (Inch) | 9/16 |
| Overall Length (Decimal Inch) | 7.3100 |
| Actuator Type | Wrench |
| Shank Length (Decimal Inch) | 5.4000 |
| Head Length (Inch) | 1-13/16 |
| Hex Diameter (Decimal Inch) | 1.0600 |
| PSC Code | 5136 |
| Balanced to (RPM) | 8000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0025 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.0600 |
