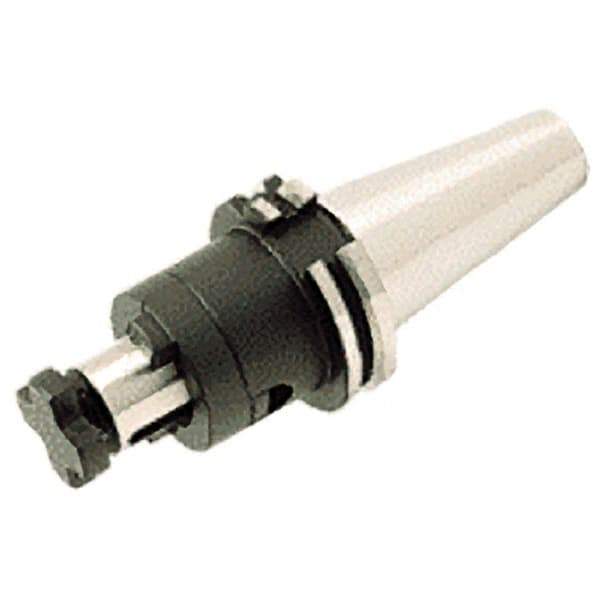

Iscar - DIN69871-40 Taper Shank 16mm Pilot Diam Shell Mill Holder - 55mm Flange to Nose End Projection, 32mm Nose Diam, Through-Spindle Coolant
Item #: 84877224
Brand: Iscar
Model #: 4538001
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DIN69871-40 |
| Pilot Diameter (mm) | 16.00 |
| Pilot Diameter (Decimal Inch) | 0.6299 |
| Projection Flange to Nose End (mm) | 55.00 |
| Projection Flange to Nose End (Decimal Inch) | 2.1654 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
