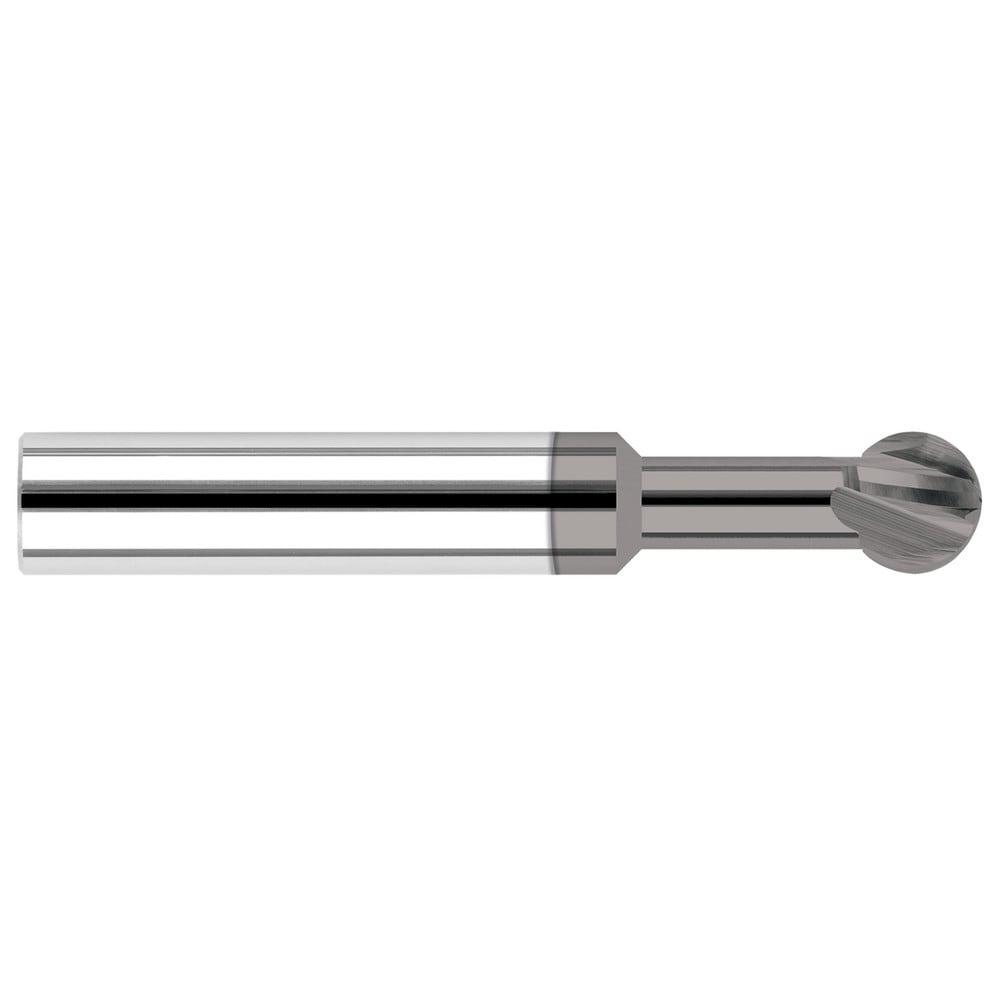

Undercutting End Mills; Mill Diameter (Decimal Inch): 0.0781; Mill Diameter (Inch): 5/64; Length Of Cut (Decimal Inch - 4 Decimals): 0.0666; Overall Length (Inch): 1-1/2; Radius: 0.0391; Number Of Flutes: 2; Neck Length (Decimal Inch): 0.1250; Neck Diamet
Item #: 86848157
Brand: Harvey Tool
Model #: 52878-C4
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0781 |
| Mill Diameter (Inch) | 5/64 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0666 |
| Overall Length (Inch) | 1-1/2 |
| Radius | 0.0391 |
| Number Of Flutes | 2 |
| Neck Length (Decimal Inch) | 0.1250 |
| Neck Diameter (Decimal Inch) | 0.0450 |
| Coating/Finish | Amorphous Diamond |
| Variable Helix | No |
| Variable Index | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| End Mill Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
