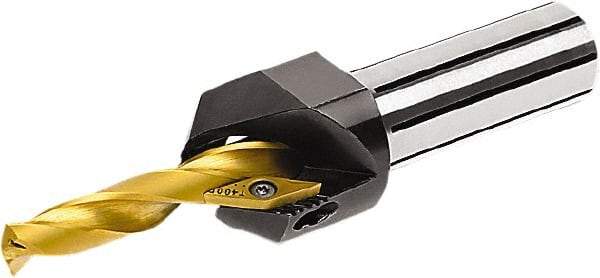

Seco - 0.157 to 3/16" Diam, Straight Shank, 1/2" Body Shank Diam, 45° Combo Chamfer and Countersink Drill - SD200-C45 Insert, 2.61" OAL
Item #: 84744846
Brand: Seco
Model #: 24474
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (Decimal Inch) | 0.1870 |
| Minimum Drill Diameter (Decimal Inch) | 0.1570 |
| Body Shank Diameter (Decimal Inch) | 0.5000 |
| Number of Drill Inserts | 1 |
| Insert Style | SD200-C45 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 0.8200 |
| Overall Length (Decimal Inch) | 2.6100 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 1.6100 |
| Through Coolant | NonThrough Coolant |
| Series | Seco Feedmax |
| Includes | Cassette; Insert Key; Locking Screw; Module Key; Stop Screw |
