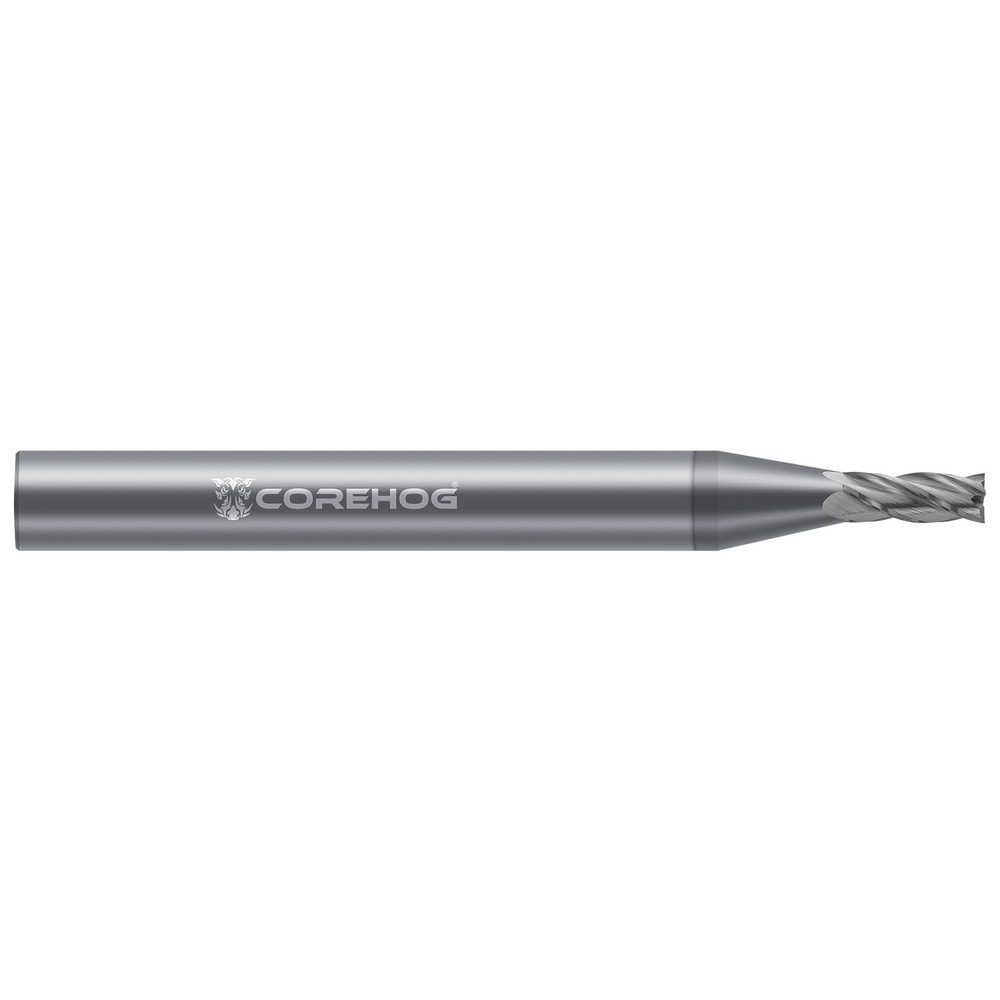

Square End Mill: 3/32" Dia, 1/2" LOC, 4 Flute, Solid Carbide
Item #: 83288902
Brand: Corehog
Model #: C46161
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0930 |
| Mill Diameter (Inch) | 3/32 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (mm) | 12.70 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | CVD Diamond |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | CFRP Materials |
| Primary Workpiece Material Code | C |
| Coating/Finish | CVD Diamond |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Miniature Diamond Coated End Mills - Square |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
