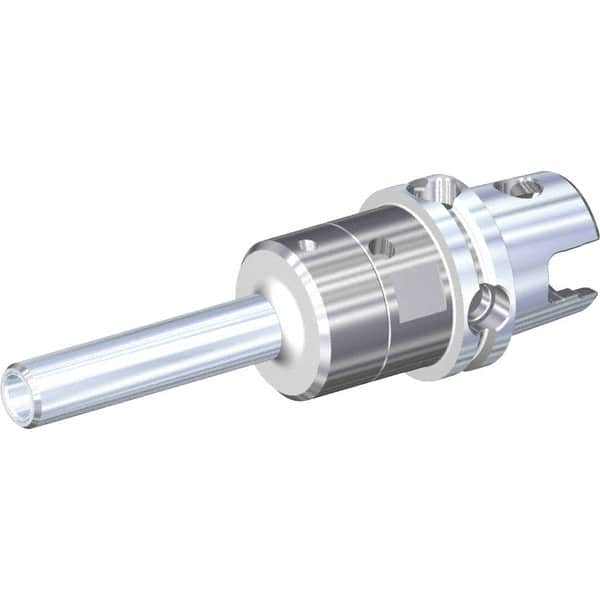

Kennametal - KM63UT Modular Connection, 18mm Hole Diam, Hydraulic Tool Holder/Chuck - 25.5mm Nose Diam, 170mm Projection, 39mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 84463900
Brand: Kennametal
Model #: 3055509
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | KM63UT |
| Hole Diameter (Decimal Inch) | 0.7087 |
| Hole Diameter (mm) | 18.00 |
| Nose Diameter (Decimal Inch) | 1.0039 |
| Nose Diameter (mm) | 25.50 |
| Projection (Decimal Inch) | 6.6929 |
| Projection (mm) | 170.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 39.00 |
| Clamping Depth (Decimal Inch) | 1.5354 |
| Overall Length (mm) | 109.93 |
| Overall Length (Decimal Inch) | 4.3280 |
| Balanced to (RPM) | 15000 |
