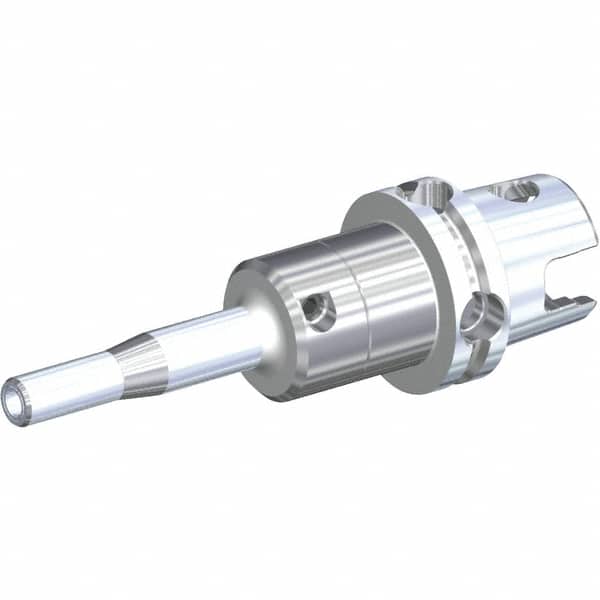

Kennametal - KM63UT Modular Connection, 8mm Hole Diam, Hydraulic Tool Holder/Chuck - 15.5mm Nose Diam, 160mm Projection, 27mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 84463876
Brand: Kennametal
Model #: 3055504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | KM63UT |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Hole Diameter (mm) | 8.00 |
| Nose Diameter (Decimal Inch) | 0.6102 |
| Nose Diameter (mm) | 15.50 |
| Projection (Decimal Inch) | 6.2992 |
| Projection (mm) | 160.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 27.00 |
| Clamping Depth (Decimal Inch) | 1.0630 |
| Overall Length (mm) | 199.95 |
| Overall Length (Decimal Inch) | 7.8720 |
| Balanced to (RPM) | 15000 |
