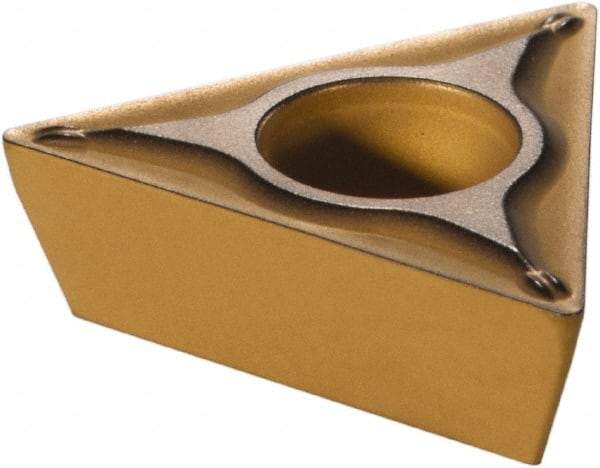

Sumitomo - TPMT331 ESU Grade AC610M Carbide Turning Insert - Al2O3 Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 84329275
Brand: Sumitomo
Model #: 19PV110
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC610M |
| Coating | Al2O3 |
| Material Grade | C6/C7/C8 |
| Chip Breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1693 |
| Rake | Positive |
| Rake Angle | 8 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
