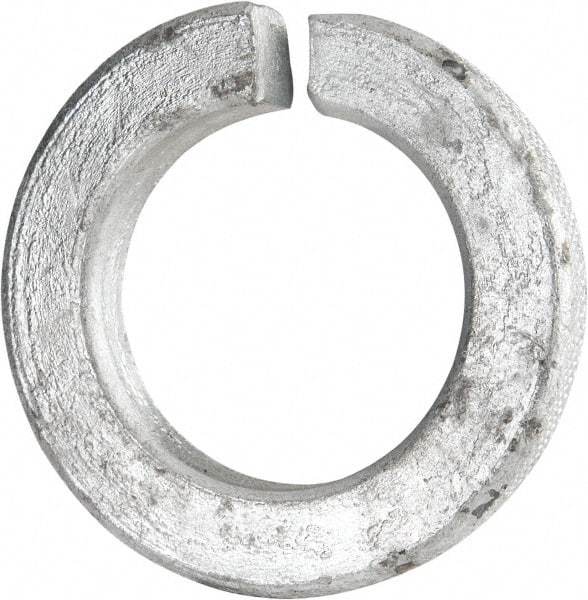

Value Collection - 1-1/4", 1.274" ID, 0.312" Thick Split Lock Washer - Grade 8 Spring Steel, Hot Dipped Galvanized Finish, 1.274" Min ID, 1.3" Max ID, 2.056" Max OD
Item #: 84020304
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1-1/4 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Hot Dipped Galvanized |
| Inside Diameter (Decimal Inch) | 1.2740 |
| Thickness (Decimal Inch) | 0.3120 |
| Minimum Inside Diameter (Decimal Inch) | 1.2740 |
| Maximum Inside Diameter (Decimal Inch) | 1.3000 |
| Maximum Outside Diameter (Decimal Inch) | 2.0560 |
| Military Specification | Does Not Meet Military Specifications |
