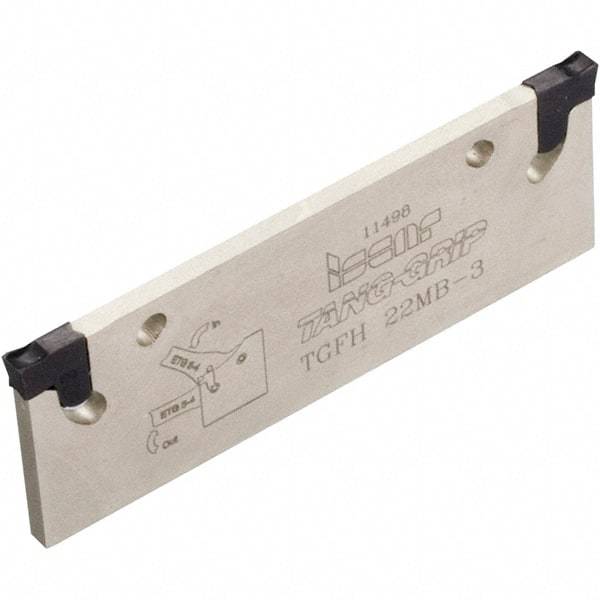

Iscar - 2.5mm Blade Width, 64mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - 12mm Max Depth of Cut, TGFH Blade, Tang-Grip Series
Item #: 83994434
Brand: Iscar
Model #: 2390165
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Width (mm) | 2.50 |
| Blade Overall Length (mm) | 64.00 |
| Blade Style | TGFH |
| Insert Style | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 2.80 |
| Insert Width (Decimal Inch) | 0.1102 |
| Series | Tang-Grip |
| Insert Seat Size | 2.5 |
| Insert Holding Method | Clamp |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Height (mm) | 22.20 |
| Cutting Height (Decimal Inch) | 0.8740 |
| Minimum Insert Width (mm) | 2.80 |
| Minimum Insert Width (Decimal Inch) | 0.1102 |
| Maximum Insert Width (mm) | 3.50 |
| Maximum Insert Width (Decimal Inch) | 0.1378 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
