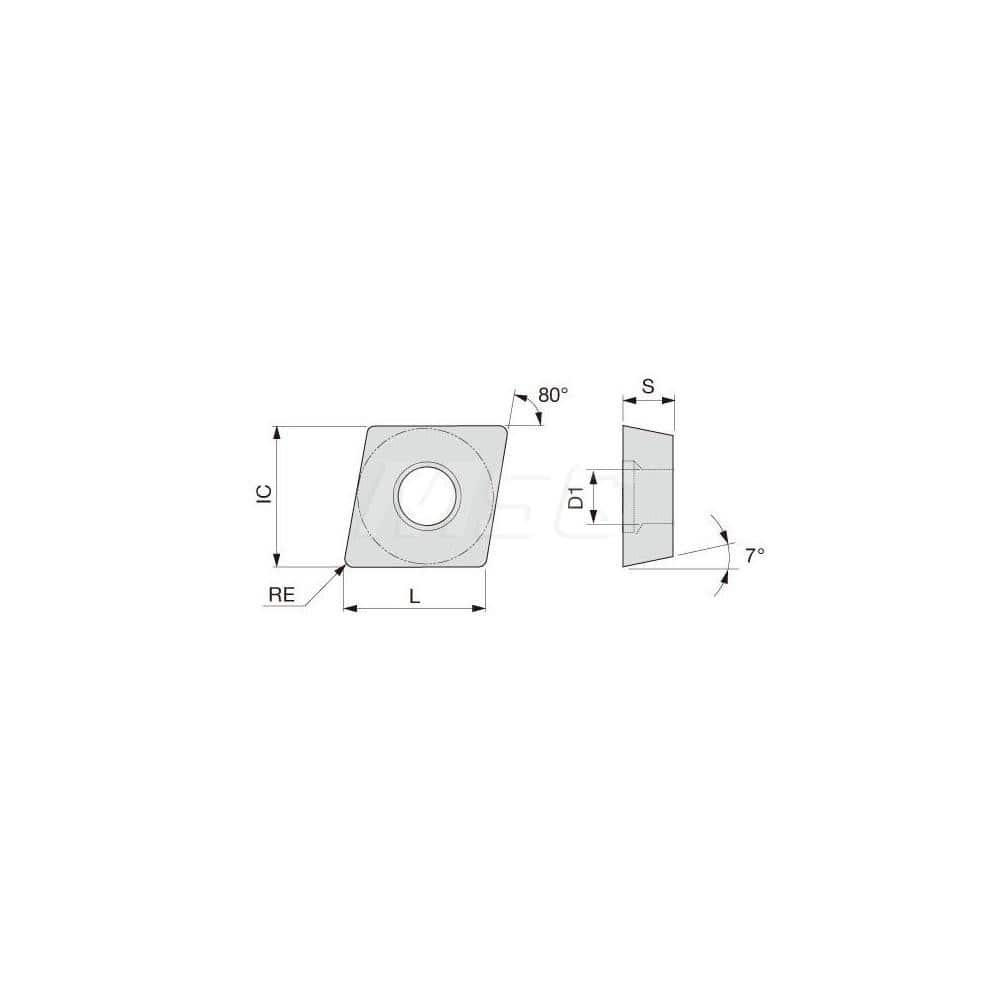

Turning Insert: CCGT4.51.8VL-W08 SH730, Solid Carbide TiAlN Finish, Left Hand, 0.0010″ Corner Radius, 80.0 ° N/A Diamond, Series CCGT
Item #: 83895987
Brand: Tungaloy
Model #: 6862150
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 4.51.8 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH730 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Decimal Inch) | 0.1410 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0550 |
| Corner Radius (Decimal Inch) | 0.0010 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | CCGT4.51.8VLW08SH730 |
| Iso Code | CCGT03X100L-W08 SH730 |
| Chip Breaker | W08 |
| Coating/Finish | TiAlN |
