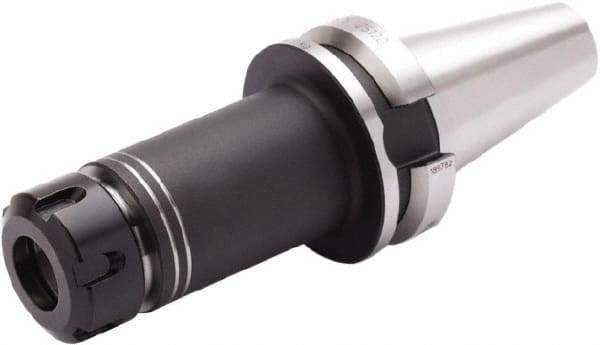

Seco - 0.039" to 0.63" Capacity, 65mm Projection, BT30 Taper Shank, ER25 Collet Chuck - 4.465" OAL
Item #: 83854026
Brand: Seco
Model #: 65955
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (mm) | 65.00 |
| Projection (Decimal Inch) | 2.5600 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.6300 |
| Overall Length (Decimal Inch) | 4.4650 |
| Nose Diameter (Decimal Inch) | 1.6540 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
