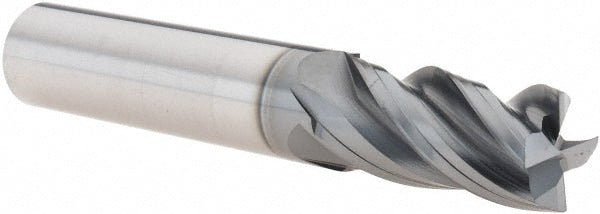

Corner Radius End Mill: 1/2" Dia, 1" LOC, 0.0100" Radius, 4 Flute, Solid Carbide
Item #: 36009074
Brand: YG-1
Model #: UGMF70925
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Variable |
| Overall Length (Decimal Inch) | 3 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Reach Length (Decimal Inch) | 1.0000 |
| Reach Length (Inch) | 1 |
| Corner Radius Tolerance | +0.0008 to -0.0008 in |
| Mill Diameter Tolerance | +0.0000/-0.0012 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Material Grade | Micrograin |
| Series | UGMF70 |
| Additional Information | Special Flute Geometry & Multiple Helix Eliminate Vibrations. Excellent Performance for Stainless SteelsMild SteelsCast IronLow/Medium Hardness Materials & All Exotic Materials Up to Hrc40. Advanced Coating for Superior Performance & Tool Life |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | UGMF70925 |
