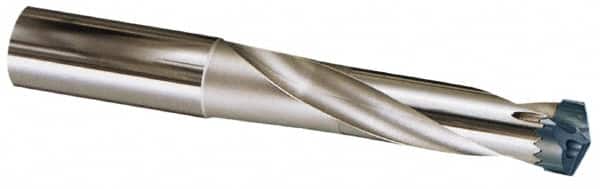

Sumitomo - 20.51 to 21.5mm Diam, 3xD, 2.953" Max Depth, 1" Shank Diam, 3.852" Flute, 6.102" OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 83727503
Brand: Sumitomo
Model #: 5L00W0W
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 20.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.8074 |
| Maximum Drill Diameter (mm) | 21.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.8465 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.9530 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (Decimal Inch) | 3.8520 |
| Body Length (Decimal Inch) | 3.8520 |
| Overall Length (Decimal Inch) | 6.1020 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.2500 |
