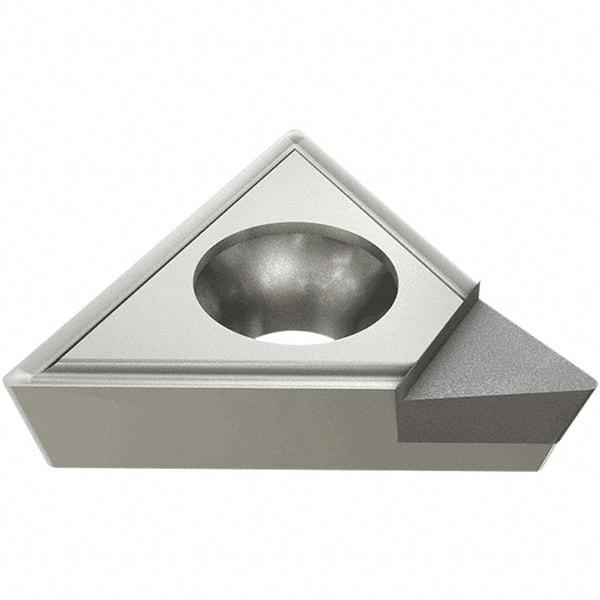

Iscar - TPGX220 Grade IB50 CBN Turning Insert - 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.0079" Corner Radius
Item #: 83685297
Brand: Iscar
Model #: 5700562
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 220 |
| Material | CBN |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IB50 |
| Hole Diameter (mm) | 3.50 |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.0020 |
| Insert Holding Method | Screw |
| Shape | Triangle |
