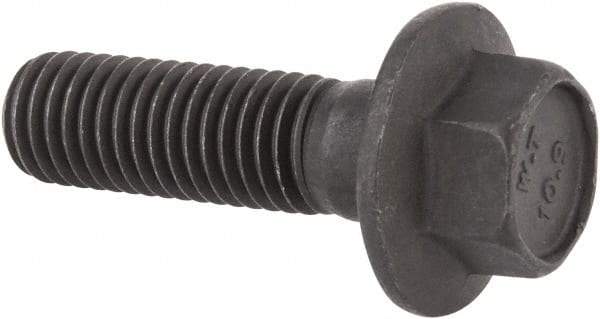

Value Collection - M12x1.75 Metric Coarse, 40mm Length Under Head, Hex Drive Flange Bolt - 40mm Thread Length, Grade 10.9 Alloy Steel, Smooth Flange, Phosphate & Oil Finish
Item #: 83242719
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Hex drive types have six uniform sides that allow fast rotation and easy adjustment. They are driven by wrenches or sockets and are ideal for limited-clearance applications.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Thread Size | M12x1.75 |
| Length (mm) | 40.00 |
| Drive Type | Hex |
| Material | Alloy Steel |
| Material Grade | Grade 10.9 |
| Finish/Coating | Phosphate & Oil |
| Thread Standard | Metric Coarse |
| Flange Type | Smooth |
| Flange Diameter (mm) | 26.60 |
| Length Measurement Type | Length Under Head |
| Fastener Standard | DIN 6921; DIN ISO 898-1 |
| Thread Length (mm) | 40.00 |
| Drive Size (mm) | 15.73 to 16.00 |
