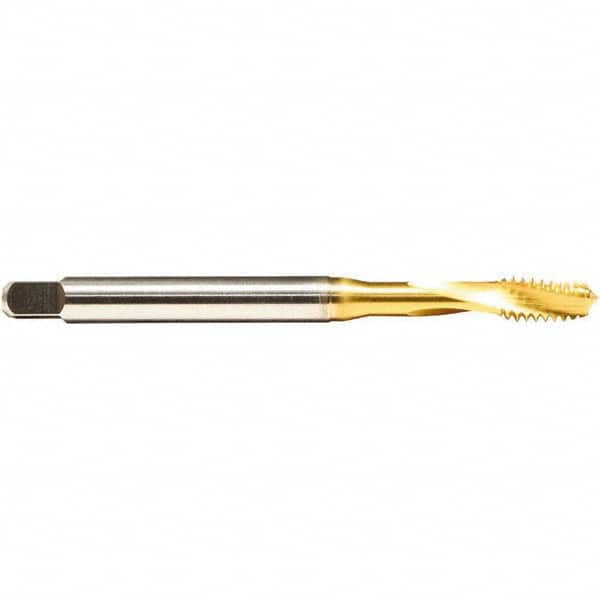

Emuge - 1/4-20 UNC 3 Flute 2BX Modified Bottoming Spiral Flute Tap - Cobalt, TiN Finish, 3.15" OAL, Right Hand Flute, Right Hand Thread, Series Rekord D
Item #: 83214197
Brand: Emuge
Model #: BU263701.5009
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-20 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2BX |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.1500 |
| Helix Angle | 15 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5120 |
| Flute Type | Slow Spiral |
| Series/List | Rekord D |
| Tapping Depth (Decimal Inch) | 1.1810 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Shank Length (Decimal Inch) | 1.9690 |
| Material Application | Aluminum Alloys; Cast Iron; Copper; Copper Alloys; Stainless Steel; Steel |
