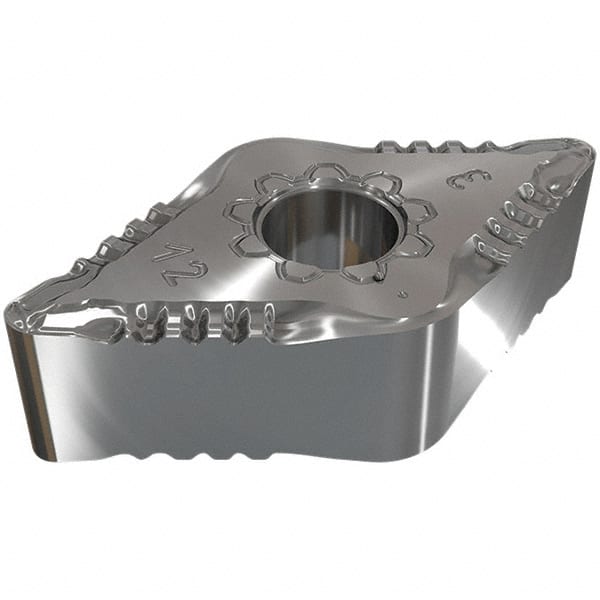

Iscar - DNMG441 F3P Grade IC8250 Carbide Turning Insert
Item #: 30728208
Brand: Iscar
Model #: 5566827
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 441 |
| Material | Carbide |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | F3P |
| Insert Length (Decimal Inch) | 0.6100 |
| ISO Number | DNMG 441-F3P |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Shape | Diamond |
