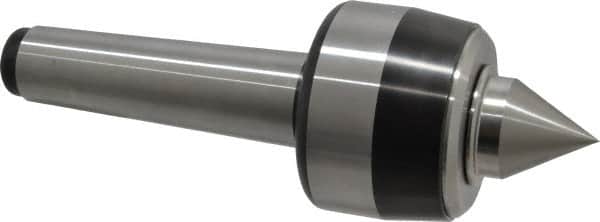

Royal Products - MT4 Taper Shank, 2.68" Head Diam 5,770 Lb Capacity Live Center
Item #: 00099143
Brand: Royal Products
Model #: 10104
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1720.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 1-1/4 |
| Point Diameter (Decimal Inch) | 1.2500 |
| Point Length (Decimal Inch) | 1.4800 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 5770.00 |
| Thrust Load (Lb.) | 4050.00 |
| Radial Load (Lb.) | 1720.00 |
| Head Diameter (Decimal Inch) | 2.6800 |
| Head Length (Decimal Inch) | 1.9800 |
| Shank Length (Inch) | 4-7/16 |
| Shank Length (Decimal Inch) | 4.4375 |
| Overall Length (Inch) | 7-7/8 |
| Included Angle | 60.00 |
| Bearing Type | Double Bearing |
| Maximum RPM | 4500 |
| Material | Steel |
| Carbide-Tipped | No |
