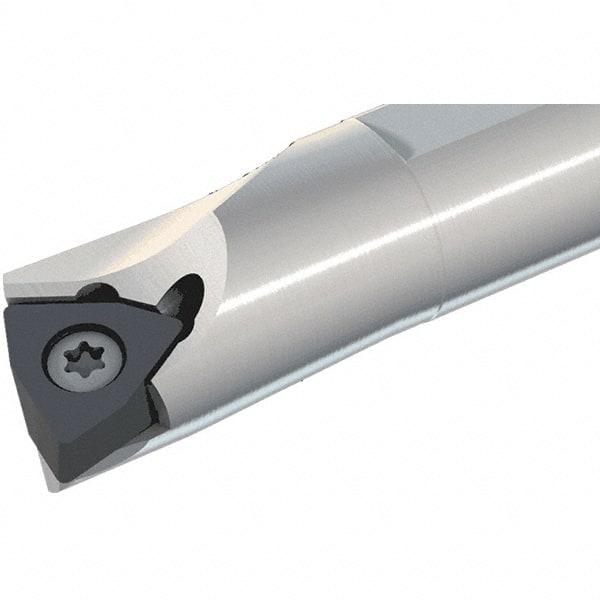

Iscar - Indexable Boring Bars Toolholder Style: E10M SWLNL Series: Isoturn
Item #: 46665089
Brand: Iscar
Model #: 6989903
Product Specifications
Indexable Boring Bars; Toolholder Style: E10M SWLNL ; Series: Isoturn ; Minimum Bore Diameter (mm): 12 ; Minimum Bore Diameter (Decimal Inch): 0.472 ; Hand of Holder: Left Hand ; Maximum Bore Depth (mm): 60
| Toolholder Style | E10M SWLNL |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 12 |
| Minimum Bore Diameter (Decimal Inch) | 0.472 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 60 |
| Maximum Bore Depth (Decimal Inch) | 2.362 |
| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.905 |
| Shank Diameter (mm) | 10 |
| Shank Diameter (Decimal Inch) | 0.393 |
| Insert Compatibility | WNGP |
| Through Coolant | Yes |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Number of Inserts Included in Order | 0 |
