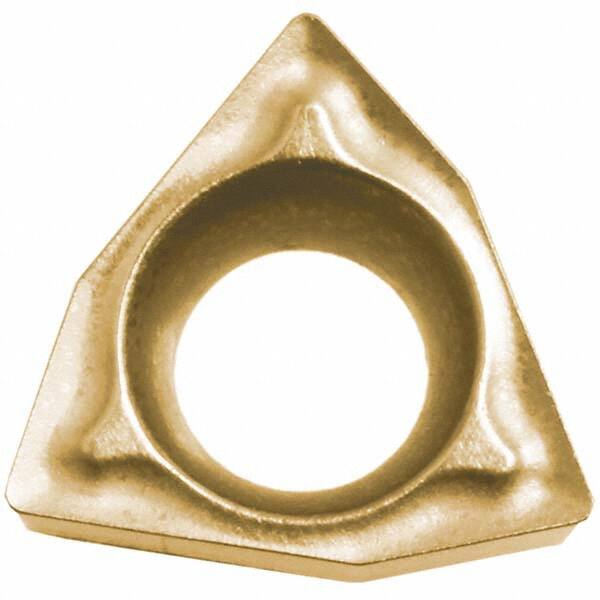

Kyocera - WBMT1211 DP Grade PV720 Cermet Turning Insert
Item #: 11388634
Brand: Kyocera
Model #: 8862826
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 1211 |
| Material | Cermet |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Chip Breaker | DP |
| Hole Diameter (Decimal Inch) | 0.0906 |
| ISO Number | WBMT060104R-DP |
| Rake | Positive |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WBMT1211RDP PV720 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Series | WBMT |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Trigon |
