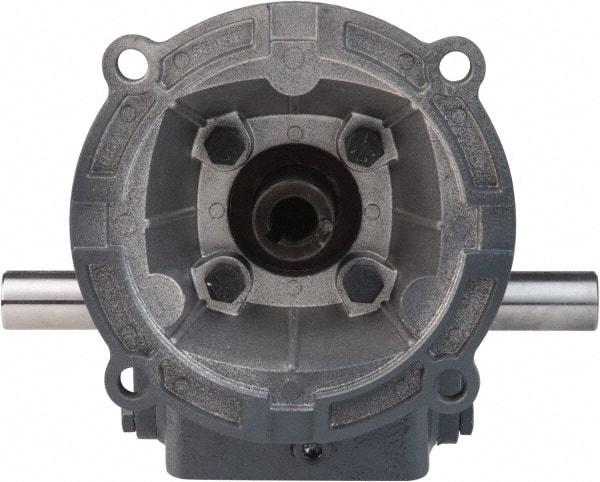

Boston Gear - 2.62 Centerline Distance, 30:1, 58 RPM Output, 1.68 Input Horsepower, 1,521 Lbs. Max Torque, Speed Reducer - Part No. F726-30-B5-H, Double Shaft Left & Right, 5/8" Bore, 5.56" High, 56C NEMA
Item #: 82931726
Brand: Boston Gear
Model #: 52039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 30:1 |
| NEMA Size | 56C |
| PartNo | F726-30-B5-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1521.00 |
| Maximum Input Horsepower | 1.68 |
| Output RPM at 1750 Input | 58.0 |
