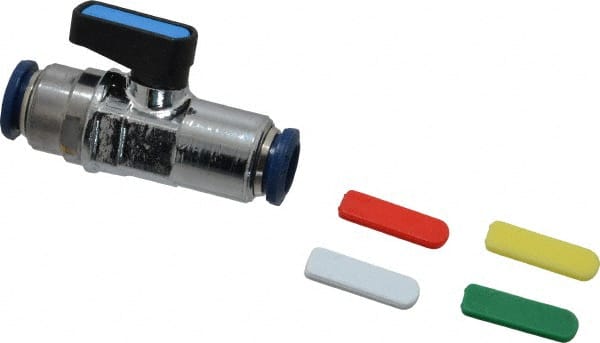

Miniature Manual Ball Valve: 3/8″ Pipe Tube OD x Tube OD
Item #: 82916909
Brand: Aignep USA
Model #: 86320-06-06
Product Specifications
| Type | Miniature Ball Valve |
| Valve Type | Miniature Ball Valve |
| Pipe Size | 3/8 |
| Valve Structure | 1-Piece |
| Tube Outside Diameter | 3/8 in |
| Body Material | Brass |
| End Connection | Tube OD x Tube OD |
| Handle Type | Wedge |
| Trim Material | Brass |
| Seal Material | NBR |
| Standards | RoHS 2011/65/CE; REACH 1907/2006; BD EN 331:2015; PED 2014/68/UE |
| Maximum Working Pressure (Psi - 3 Decimals) | 250.00 |
| Minimum Working Temperature (Deg C) | -20 |
| Minimum Working Temperature (Deg F) | -4 |
| Maximum Working Pressure | 250 psi |
| Maximum Working Temperature (F) | 176 |
| Minimum Working Temperature | -20 ?C; -4 ?F |
| Maximum Working Temperature | 80 ?C; 176 ?F |
| Finish Coating | Chrome-Plated |
| Maximum Working Temprature (Deg C) | 80 |
| Number Of Pieces | 1 |
