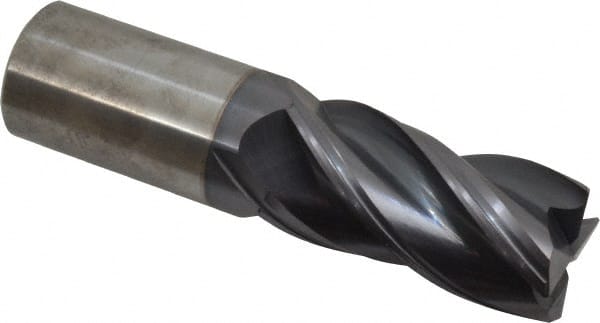

Corner Chamfer End Mill: 1″ Dia, 2″ LOC, 4 Flute, 0.025″ Chamfer Width, Solid Carbide 4″ OAL, 1″ Shank Dia, AlTiN Coated, Centercutting
Item #: 82892415
Brand: Accupro
Model #: 446T1000C11
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Chamfer Width (Decimal Inch) | 0.0250 |
| Mill Diameter (Inch) | 1 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 2 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Chamfer |
| Length Type | Regular |
| Flute Type | Spiral |
| Centercutting | Yes |
| Variable Helix | Yes |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | +0.0001 to -0.0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
