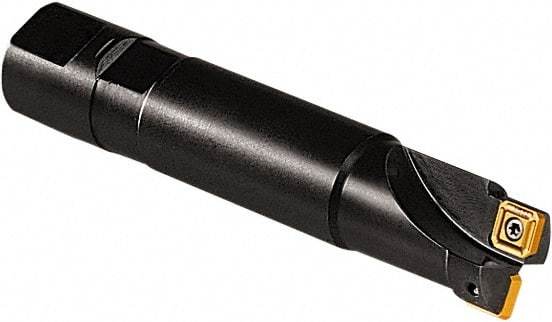

Seco - 22mm Cut Diam, 7mm Max Depth of Cut, 20mm Shank Diam, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 82878117
Brand: Seco
Model #: 21688
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 22.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 1 |
| Minimum Cutting Diameter (mm) | 22.00 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8661 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7559 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 3.6220 |
| Shank Length (mm) | 92.00 |
| Maximum RPM | 25000 |
