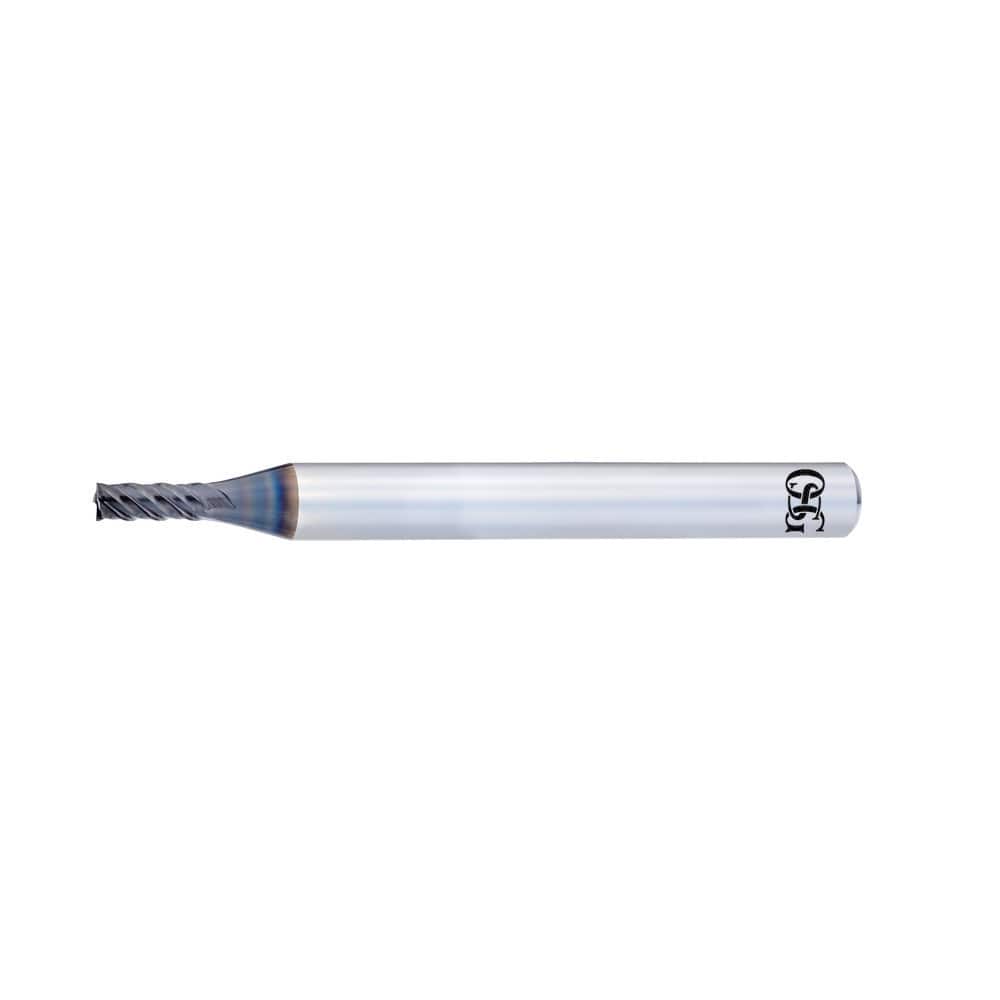

2.5 x 8 4FL A BRAND AE-MS-H Multi-flute square type and radius type carbide end mills designed for stable and high-efficiency milling of high-hardness steels.
Item #: 82837725
Brand: OSG
Model #: 85400223
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0984 |
| Mill Diameter (mm) | 2.50 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 8.0000 |
| End Mill Material | Carbide |
| End Type | Single; Square |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | DUROREY |
| Shank Diameter (mm) | 6.0000 |
| Helix Angle | 43 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 60.0000 |
| Shank Type | Straight-Cylindrical |
| Material Grade | Ultra-Fine Micrograin |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | h4 |
| Length Type | Long |
| Through Coolant | No |
| Series | 8540 |
