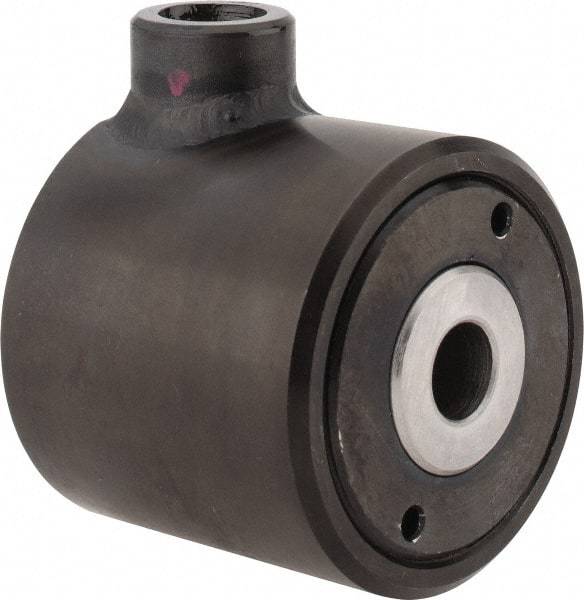

Jergens - Hollow Rod Clamp Cylinders Action Type: Pull; Push Hole Type: Tapped Hole
Item #: 82511445
Brand: Jergens
Model #: 60413
Exact Tooling IR#: 04
Product Specifications
Hollow Rod Clamp Cylinders; Action Type: Pull; Push ; Hole Type: Tapped Hole ; Operating Stroke Length (Decimal Inch): 0.2400 ; Operating Volume (Cu. In.): 0.30 ; Effective Piston Area (Sq. In.): 0.96 ; Maximum Operating Pressure (psi): 5,000.00
| Action Type | Pull; Push |
| Hole Type | Tapped Hole |
| Operating Stroke Length (Decimal Inch) | 0.2400 |
| Operating Volume (Cu. In.) | 0.30 |
| Effective Piston Area (Sq. In.) | 0.96 |
| Maximum Operating Pressure (psi) | 5000.00 |
| Minimum Operating Pressure (psi) | 100.00 |
| Maximum Output Force (Lb.) | 4800.00 |
| Hole Thread Size | 3/8-16 |
| Stroke Diameter (Inch) | 7/8 |
| Outside Diameter (Inch) | 1-15/16 |
| Bolt Hole Thread Size | 10-32 |
| Distance Between Bolt Hole Centers (Inch) | 1-5/8 |
| Overall Height (Inch) | 1-13/16 |
| Port Height (Inch) | 3/4 |
| Port Length (Inch) | 1/2 |
| Port Thread Size | 7/16-20 |
