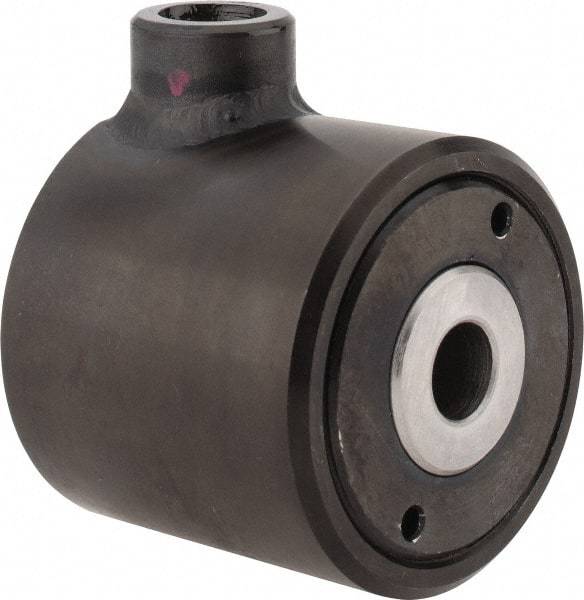

Jergens - Hollow Rod Clamp Cylinders Action Type: Pull; Push Hole Type: Tapped Hole
Item #: 82511411
Brand: Jergens
Model #: 60410
Exact Tooling IR#: 04
Product Specifications
Hollow Rod Clamp Cylinders; Action Type: Pull; Push ; Hole Type: Tapped Hole ; Operating Stroke Length (Decimal Inch): 0.3100 ; Operating Volume (Cu. In.): 0.70 ; Effective Piston Area (Sq. In.): 1.90 ; Maximum Operating Pressure (psi): 5,000.00
| Action Type | Pull; Push |
| Hole Type | Tapped Hole |
| Operating Stroke Length (Decimal Inch) | 0.3100 |
| Operating Volume (Cu. In.) | 0.70 |
| Effective Piston Area (Sq. In.) | 1.90 |
| Maximum Operating Pressure (psi) | 5000.00 |
| Minimum Operating Pressure (psi) | 100.00 |
| Maximum Output Force (Lb.) | 9850.00 |
| Hole Thread Size | 1/2-13 |
| Stroke Diameter (Inch) | 1-1/4 |
| Outside Diameter (Inch) | 2-1/2 |
| Bolt Hole Thread Size | 10-32 |
| Distance Between Bolt Hole Centers (Inch) | 2-7/32 |
| Overall Height (Inch) | 2-3/16 |
| Port Height (Inch) | 7/8 |
| Port Length (Inch) | 7/8 |
| Port Thread Size | 9/16-18 |
