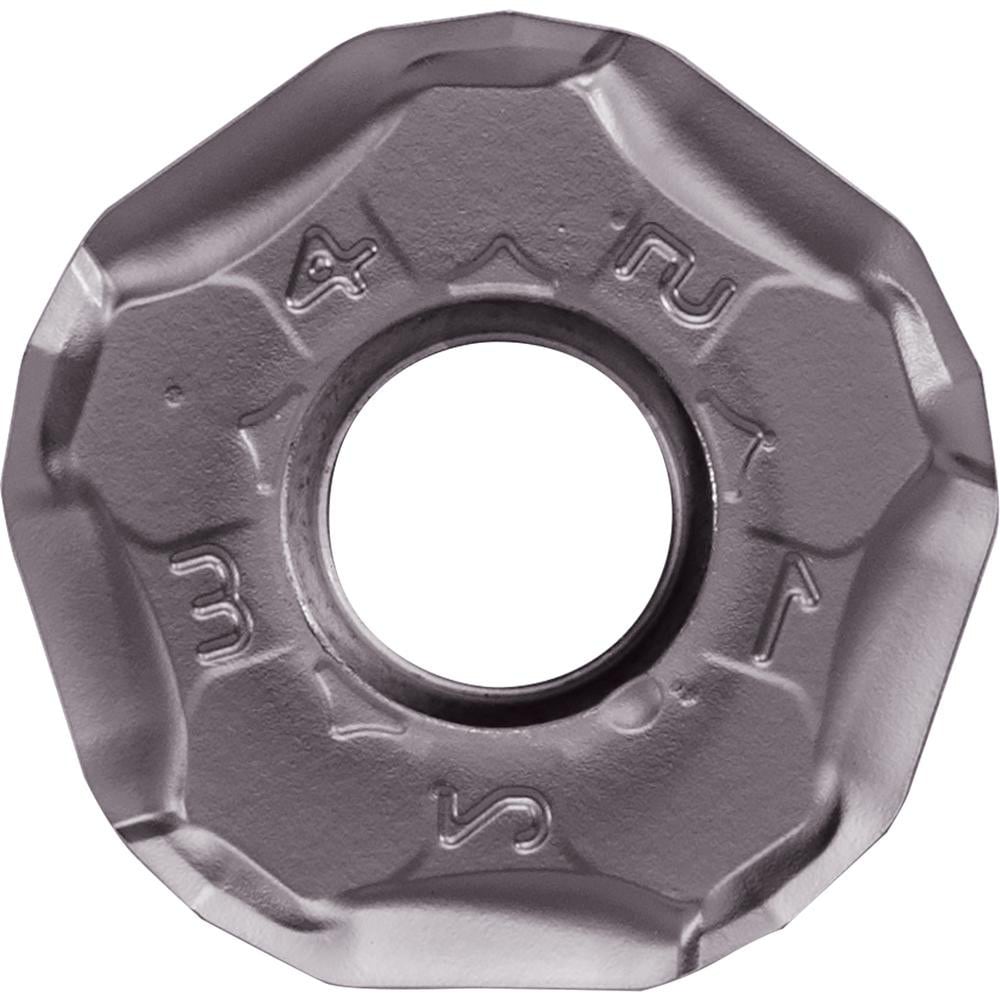

Milling Insert: PNEU1205ANER-GL PR1835, Carbide
Item #: 87390167
Brand: Kyocera
Model #: TLU00101
Product Specifications
| Insert Style | PNEU |
| Insert Size | 1205 |
| Insert Material | Carbide |
| Insert Shape | Pentagon |
| Manufacturer Grade | PR1835 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 10 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.5600 |
| Coating/Finish | MEGACOAT NANO EX |
| Thickness (Inch) | 7/32 |
| Insert Hand | Right Hand |
| Series | MFPN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.2000 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Negative |
| Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | PNEU1205ANERGLPR1835 |
| Iso Code | PNEU1205ANER-GL |
| Cutting Edge Style | Ground; High Precision (Finishing); Honed |
| Manufacturers Catalog Number | PNEU1205ANERGLPR1835 |
| Chip Breaker | ANER-GL |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Length (mm) | 17.51 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6894 |
| Country of Origin | Japan |
