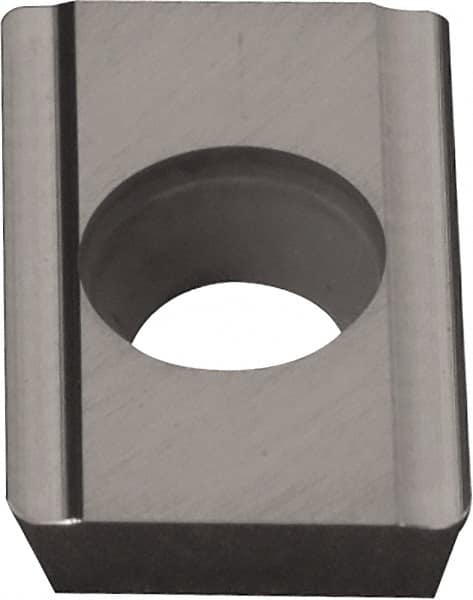

Kyocera - NDCT322 Grade TN100M Cermet Milling Insert - TiCN/NbC Finish, 1/8" Thick, 3/8" Inscribed Circle, 0.031" Corner Radius
Item #: 82247693
Brand: Kyocera
Model #: 8820965
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | NDCT |
| Insert Size | 322 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | TiCN/NbC |
| Length (Decimal Inch) | 0.5910 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 15.000 |
| Included Angle | 86 |
| Shape | Rhombic |
| Insert Hand | Right Hand |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | NDCT322TR-X |
