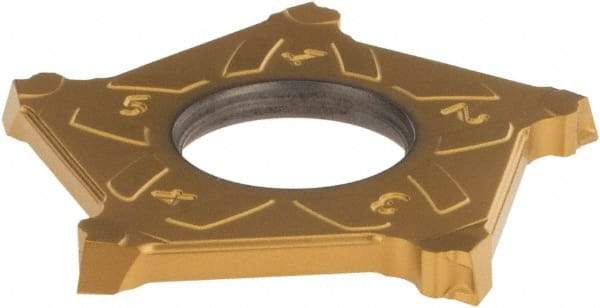

Iscar - PENTA C IC808G Grade, 0.118" Cutting Width, Carbide Cutoff Insert - 15° Right Hand Lead Angle, 0.008" Cnr Rad, TiAlN/AlTiN/TiN Coated, Other End
Item #: 82180464
Brand: Iscar
Model #: 6004661
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Lead Angle Direction | Right Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808G |
| Coating | TiAlN/AlTiN/TiN |
| Series | PentaIQGrip |
| Chipbreaker | C |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Screw |
| Manufacturers Catalog Number | PENTA D40R300C-15D |
