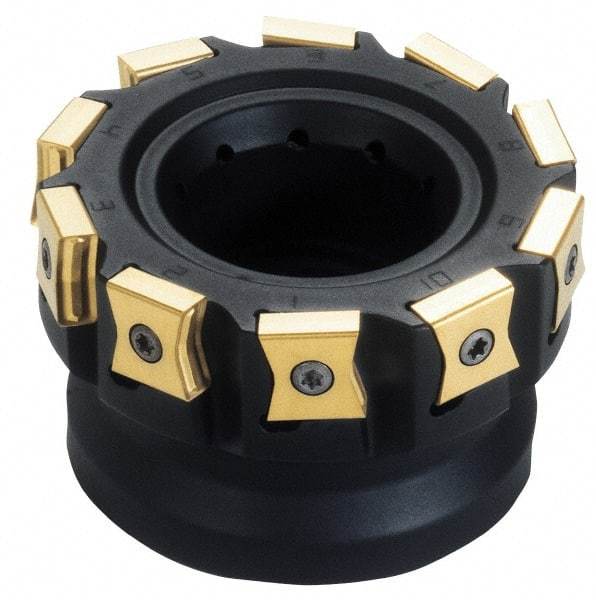

Iscar - 15 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.551" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, LN.. 1506... Insert Compatibility, Series F90LN
Item #: 82037631
Brand: Iscar
Model #: 3102216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | LN.. 1506... |
| Series | F90LN |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N15 |
| Number of Flutes | 15 |
| Complete Insert Compatibility | LNAT 1506; LNHW; LNKX; LNMT |
