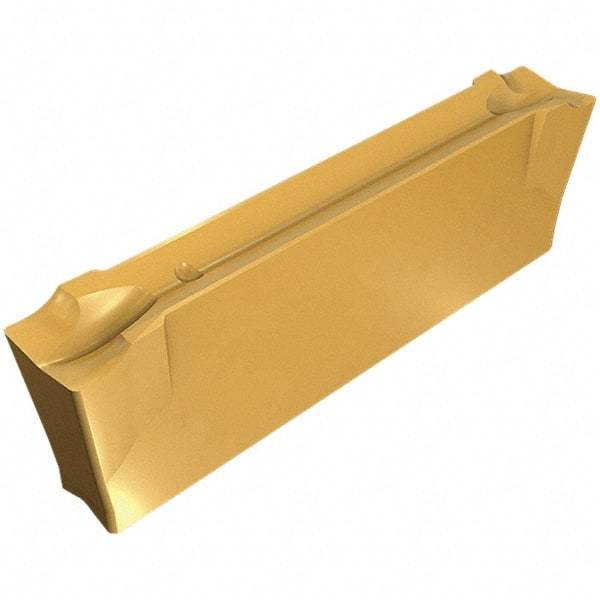

Iscar - DGN3100 JS IC308 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.001" Cnr Rad, TiCN Coated, Single End
Item #: 81922254
Brand: Iscar
Model #: 6094787
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 3100 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC308 |
| Coating | TiCN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | JS |
| Maximum Depth of Cut (mm) | 18.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Full Radius | No |
| Multi-Use Application | Facing; Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0010 |
| Corner Radius (mm) | 0.03 |
| Insert Hand | Neutral |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | DGN 3100JS |
