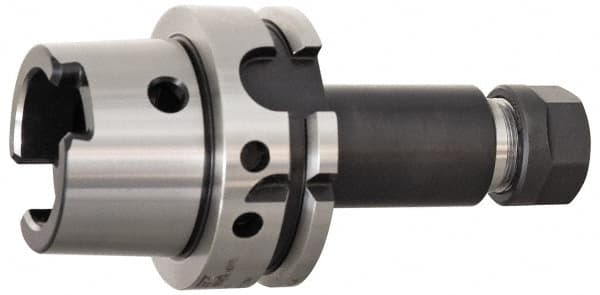

Kennametal - 0.51mm to 10.41mm Capacity, 160mm Projection, HSK50 Hollow Taper, ER16 Collet Chuck - 185mm OAL
Item #: 81819583
Brand: Kennametal
Model #: 1307790
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK50 |
| Projection (mm) | 160.00 |
| Projection (Decimal Inch) | 6.2992 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 10.41 |
| Maximum Collet Capacity (Decimal Inch) | 0.4100 |
| Overall Length (mm) | 185.00 |
| Overall Length (Decimal Inch) | 7.2835 |
| Actuator Type | Wrench |
| Nose Diameter (mm) | 28.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1020 |
| Collet Nut Diameter (mm) | 27.99 |
