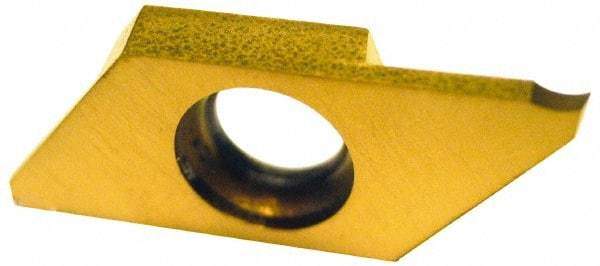

NTK - CTP FLV VM1 Grade, 0.0394" Cutting Width, Carbide Cutoff Insert - 20° Left Hand Lead Angle, TiCN Coated
Item #: 81744930
Brand: NTK
Model #: 5264882
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | CTP |
| Lead Angle Direction | Left Hand |
| Lead Angle | 20 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VM1 |
| Coating | TiCN |
| Chipbreaker | FLV |
| Maximum Depth of Cut (Decimal Inch) | 0.2640 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Cutting Height (mm) | 8.00 |
| Cutting Height (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Overall Width (Decimal Inch) | 0.0980 |
