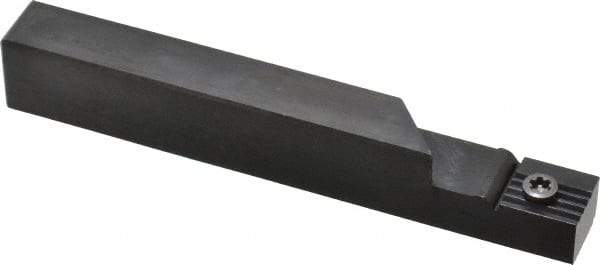

NTK - CTPW, Right Hand Cut, 20mm Max Workpc Diam, CTPW Insert, Indexable Cutoff Toolholder - 0.591 Max Depth of Cut, 16mm Shank Width, 1/2" Shank Height, 120mm OAL
Item #: 81744856
Brand: NTK
Model #: 5527007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Maximum Workpiece Diameter (mm) | 20.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7870 |
| Toolholder Style | CTPW |
| Insert Compatibility | CTPW |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (Decimal Inch) | 0.0980 |
| Head Height (mm) | 12.65 |
| Head Height (Decimal Inch) | 0.4980 |
| Shank Length (Decimal Inch) | 4.7200 |
| Complete Insert Compatibility | CTPW 25 |
