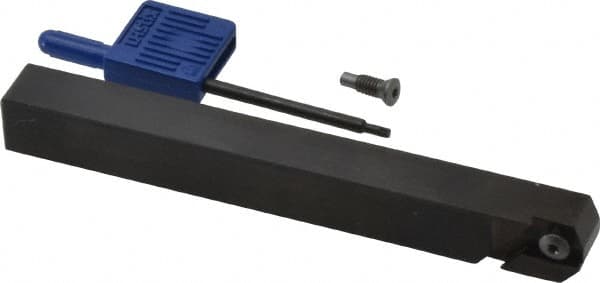

NTK - CTP, Left Hand Cut, 12mm Max Workpc Diam, CTP Insert, Indexable Cutoff Toolholder - 0.217 Max Depth of Cut, 1/2" Shank Width, 1/2" Shank Height, 120mm OAL
Item #: 81744849
Brand: NTK
Model #: 5487400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Maximum Workpiece Diameter (mm) | 12.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.4724 |
| Toolholder Style | CTP |
| Insert Compatibility | CTP |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7240 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Insert Holding Method | Clamp |
| Through Coolant | No |
| Insert Width (Decimal Inch) | 0.0980 |
| Head Height (Inch) | 1/2 |
| Head Height (Decimal Inch) | 0.5000 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
| Complete Insert Compatibility | CTPF R/L; CTPF R/LX; CTPX FR/L |
